Aluminum Extrusion Profiles Aluminum Oval Tube

Payment Type: L/C,T/T

Incoterm: FOB,EXW

$2000 - 3000 /Ton

$11,300.00 — $5,600,000.00 /Set

Product Description

Product Attributes Supply Ability & Additional Information Packaging & Delivery Product Description

Product Attributes

Model No.: Aluminum Oval Tube

Brand: ZHICHENGDA

Place Of Origin: China

Material: 6000 Series

Annealing: T3-T8

Application: Decorations, Door &Amp; Window

Shape: Flat

Whether Alloy: Is Alloy

Tolerance: ±1%

Processing Service: Bending, Decoiling, Welding, Punching, Cutting

Certification: ISO 9001, ISO 14000, CE, ROHS

Surface Treatment: Anodize,Powder coat,Polish,Brush,Electrophresis or customized.

Supply Ability & Additional Information

Packaging: Plastic Film / EP Paper / Wooden

Transportation: Ocean,Land,Air,Express

Supply Ability: 6000 tons monthly, 70000 tons annually

Port: Foshan,Guangzhou,Shenzhen

Payment Type: L/C,T/T

Incoterm: FOB,EXW

Packaging & Delivery

Selling Units:: Ton

Package Type:: Plastic Film / EP Paper / Wooden

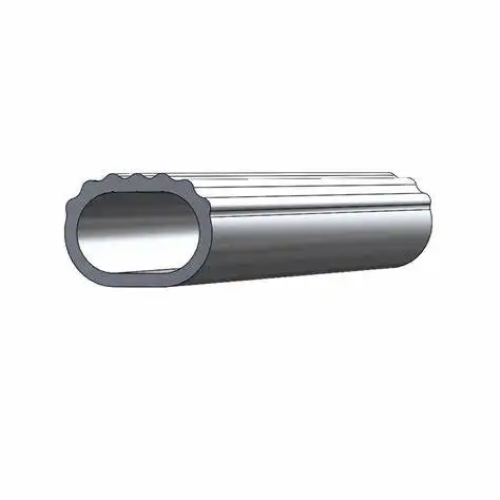

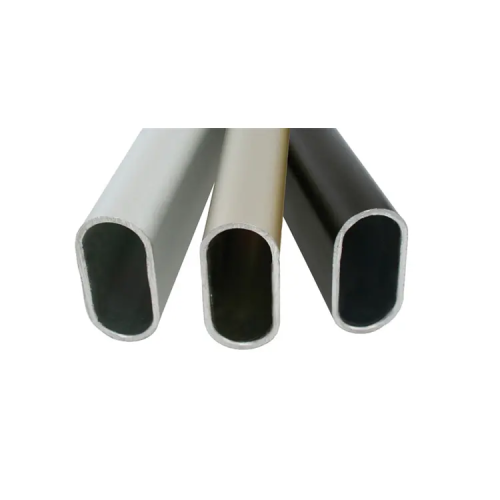

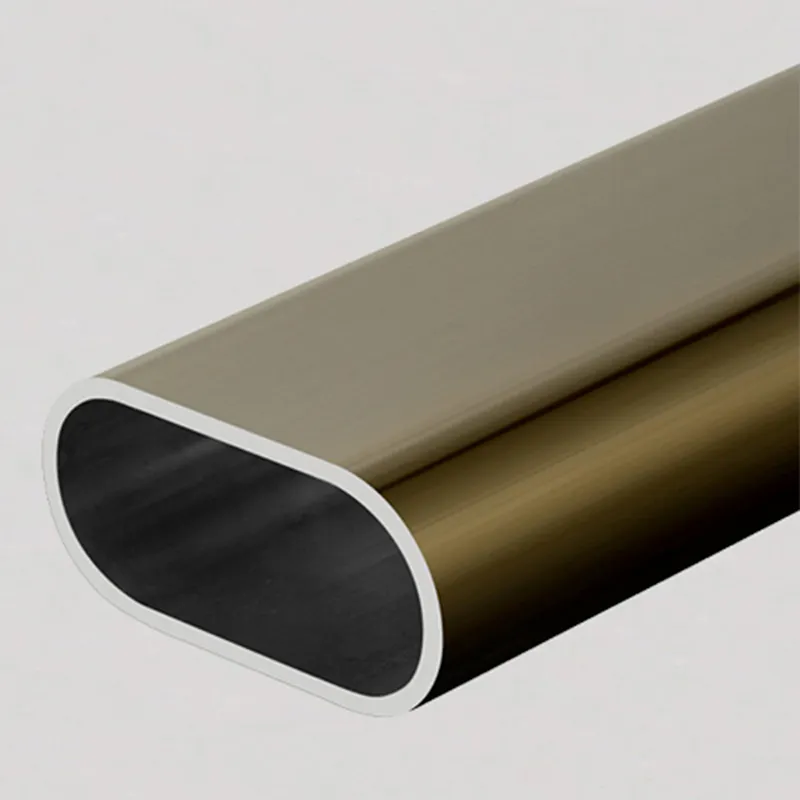

Picture Example:

Product Description

Product name	aluminum extruded 6061 tube aluminum pipe
Raw material	6000 series,7000 series aluminum alloy
Shape/length/thickness	Customized
Surface treatment	sandblasting,silver white anodizing, straiting, polishing,powder coating, wood grain transfer printing
Outer diameter	We can make outer diameter from 5~200mm
Wall thickness	We can make wall thickness from 1~7mm
Hardness	(10-12HB),T6(12-15HB) normally are the two hardness.Other hardness need to customize.

Overview

Cold Rolled EFW Welding Steel Flat Oval and Elliptic Pipes

The specialty of the oval pipe is the form itself. We offer two different types of oval pipe forms.
One is the elliptic pipe and the other the flat oval type.

Steel Grade: Q195, Q215, Q235, Q345, S235JR, S275JR, SS4007

Flat Oval Pipes

Oval pipes are mainly produced with a diameter of 0.5 - 2.0 mm. Different wall thickness, materials and surfaces (e.g. IIIc, K240, K400, K600) as well as lengths can be produced on inquiry.

1. The drawing

2. The specification

Flat Oval Pipe(mm)
a b d length

10          23           0.5-0.8          6000
12          23           0.5-0.8          6000
11.5       21           0.5-0.8          6000
12          25           0.5-1.2          6000
15          30           0.6-1.5          6000
17          30           0.8-1.5          6000
25          40           0.8-2.0 6000

20 40 0.7-1.5 6000

20 49 0.8-1.5 6000

25 45 0.7-1.5 6000

30 60 0.9-1.5 6000

25 50 0.7-1.5 6000

30 70 0.9-1.7 6000

30 80 0.9-1.7 6000

40 80 1.0-1.7 6000

40 90 1.0-1.7 6000

20 140 1.1-1.5 6000
